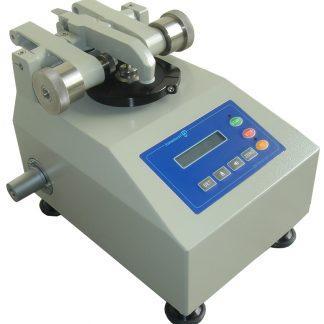

TABAR Abrasion Tester

This precision-built instrument was developed to perform accelerated wear testing.  Capable of providing reliable data in minutes.

Categories: ,

Description

This precision-built instrument was developed to perform accelerated wear testing.  Capable of providing reliable data in minutes rather than years. Since its inception, the Abrasion Tester has been used for quality & process control, research & development, and material evaluation.

The machine is made up of :

  • 1 specimen clamping disk
  • 2 grinding wheels
  • 2 vacuum nozzles
  • 1 specimen clamp above the disk
  • 2 wheels that can select different weights on specimens.

The grinding wheel has a diameter of approx 50mm and width approx 13mm. The test revolution is set for when the machine is working. The nozzles will suck abrasion dust throughout the test process. To evaluate the wear resistance condition the test material can be viewed or weighed by the machine before and after tests are carried out or measurements of the test materials thickness can be calculated.

This machine is suitable for test materials such as paper, cloth, plywood, carpet, glass, rubber and
plastic materials, etc.

Standards:

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352,
ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K 6964, DIN 52347,
DIN53109, DIN53754, DIN 53799
