IM171-Speed and Direction

IM171 - SD

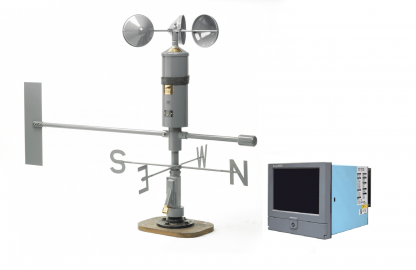

Manufactured to WMO guidelines. This system consists of a Paperless Recorder and a Wind Speed and Direction Sensor only.

Description

Wind Speed and Direction Sensor

The system is manufactured in the UK in accordance with WMO guidelines. This system provides 10 and 2-minute averages, gust/maximum and minimum recordings.

The Paperless Recorder (PR) is a data acquisition unit with a 5.6″ TFT touch screen. Designed for Wind Speed and Direction only  The IM171-SD is ideally suited for customers who require Wind speed data. The PR is supplied with PC software which offers multiple real-time and historical views, as well as numerous archiving strategies to ensure data is never lost.

Please specify your application, sensors required and if a calibration certificate with test results is required when requesting a quotation.

Wind Speed and Direction Sensor



Additional information

Scale

Knots, Metres per Second, Miles per Hour

Certificate of Conformity

Yes, No

Product Specifications

Data Logger
Power 90-250VAC or 11-36VDC
Display 5.6" TFT touch screen
Resolution 640x480 pixel resolution, 65K colour
Internal Memory, RAM External Memory Ethernet 256 MB 256 MB SDcard,USBx2 Modbus TCP/IP
Sample Rate Maths Channels 100ms max Yes
Protection Operating Temp IP65F, IP20R 0°C to 50° C

Brochure

im171-sd1
