Large Volume Air Samplers

L100, L60 and L30

Air samples are taken to measure the concentration of harmful airborne contaminants. This is for health-and-safety purposes and to monitor compliance with industry regulations.

This product is currently out of stock and unavailable.

SKU: L100, L60 and L30 Categories: ,

Description

Large Volume Air Samplers

Air samples are taken to measure the concentration of harmful airborne contaminants. This is for health-and-safety purposes and to monitor compliance with industry regulations.

We manufacture several types of air sampler within this range:

  • L60 Large Volume Air Sampler – Operates with a nominal air flow rate of 60 litres per minute.

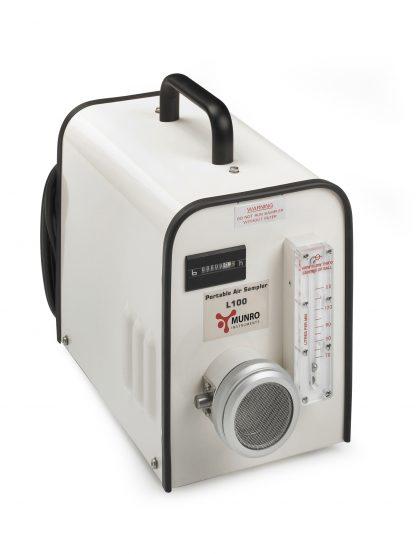

  • L100 Large Volume Air Sampler – Operates with a nominal air flow rate of 100 litres per minute.

Each can be built to work with either a 110V or 240V power supply. Please specify which is required when requesting a quotation.

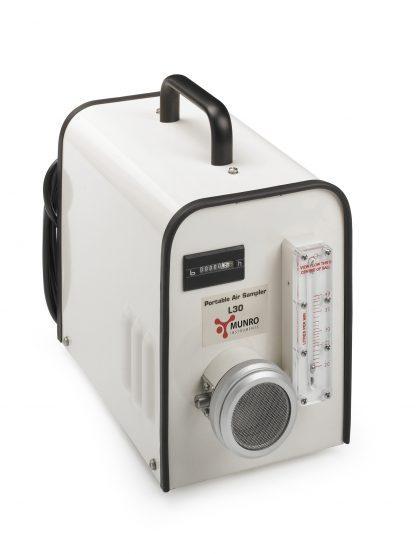

Other models, such as the L30 and L40vF, are available to order in larger quantities only. Please contact us for further details.

How it Works

The main assembly of each sampler comprises a pump and motor unit. The motor is an induction type fitted with a permanent capacitor.

Protection against overload or stalling is provided by a resettable cut-out trip. A separate fan fitted within the sampler casing cools the pump and motor.

The sampling time can be measured using the inbuilt lapsed-time indicators. These also measure servicing intervals. Airflow rate is indicated by calibrated floating ball flow gauges.

The air inlets, which are protected by a gauze mesh, accept either a local 60 mm filter paper holder, an adaptor for 47 mm filter or a hose adaptor. If an extension hose is connected to the adaptor, the actual sampling point can be located up to 3 metres away from the pump. This enables sampling in high or inaccessible locations.

A silencer is fitted in the exhaust airline.

Large Volume Air Samplers

Additional information

Type

L100, L60, L30

Voltage

240V 50Hz, 110V 50Hz

Certificate of Conformity

Yes, No

Product Specifications

Nominal Flow Rate 30 L/min (L30); 60 L/min (L60); 100 L/min (L100)
Flow Gauge 20-40 L/min (L30); 40-70 L/min (L60); 70-100 L/min (L100)
Lapsed Time Indicator to 9999.99 hr
Standard Filter Size 60 mm dia.
Sliding Vane Pump 4 Vanes
Power Supply 110V 50Hz or 240V 50Hz
Motor Protection 1.6 A at 110 V 50 Hz or 800 mA at 240 V 50 Hz
Dimensions 240 mm (H) X 175 mm (W) X 330 mm (D)
Weight 8.8 kg (L30); 10 kg (L60); 11.4 kg (L100)
Enclosure Steel, Powder Coated
