Rain Gauge Data Logger

HD2013-DB

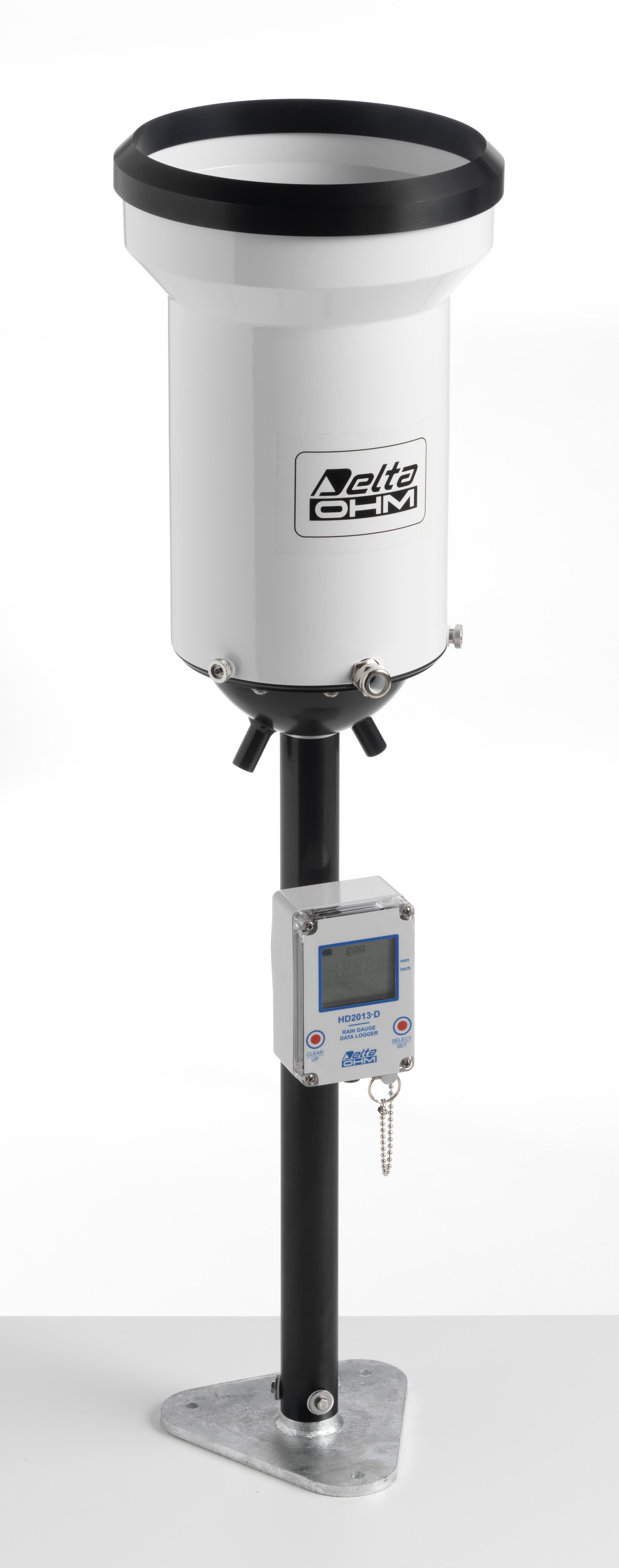

HD2013-DB is a data logger that has been specifically developed to capture and store rainfall trends. It works with a long-life lithium battery and large memory, providing remarkable recording capacity without user intervention.

SKU: HD2013-DB Categories: ,

Description

HD2013-DB is a data logger that has been specifically developed to capture and store rainfall trends. It works with a long-life lithium battery and large memory, providing remarkable recording capacity without user intervention. The display auto power-off feature allows a prolonged battery life.

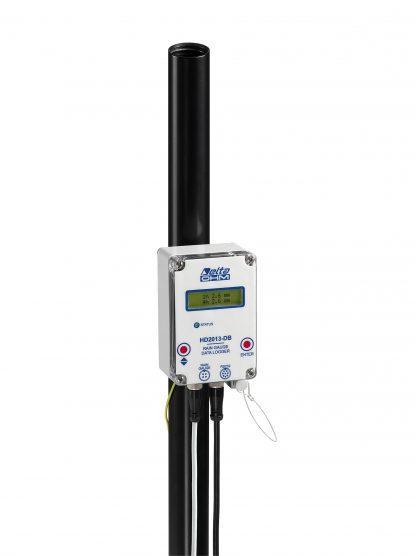

A front LED lets you check the operating status of the instrument when the display is off. The LED changes colour when the rain gauge contact switches, thus allowing to verify that the rain gauge tipping bucket returns correctly in the stable position after emptying.

For user convenience, the battery can be also replaced by three alkaline batteries (not supplied with instrument). The backlit display shows in real time the rain quantity during various time intervals.

The instrument is perfectly waterproof thanks to the use of reed relays. The reed relays are operated through a magnet, attached to the end of an aluminium handle tied to the case. When not in use, the magnet is placed back into its holder.

The software HD32MTLogger supplied with the instrument allows parameters to be set for the instrument, the real time display of the values captured by the data logger, the download to a PC and the process of the stored data.

The connection to the PC is made via the M12 8-pole RS232C serial connector placed at the bottom of the instrument.

HD2013-DB can be connected to HD2015.

Connection to PC

The data logger is provided with an RS232 serial port with 8-pole M12 connector located at the bottom of the instrument.

With the HD32MTLogger software, for Windows® operating systems, it is possible to set the parameters and the language of the instrument, view in real time the values captured by the data logger, download to the PC and process the stored data.

Accessories:

CP2013-DB: 4-pole cable. Length 1 m. 4-pole M12 connector on one side, open wires on the other side.

HD2110RS: Serial connection cable with M12 connector on the instrument side and 9-pole SubD female connector for RS232C on the PC side.

CP25: Serial connection cable with USB connector on the PC side and 8-pole M12 female connector on the instrument side. The cable has a built-in USB/ RS232 converter and connects the instrument directly to the PC USB port.

HD2003.77/40: Clamping for fixing the data logger to the Ø 40 mm support mast of the rain gauge.

BAT-2013DB: 3.6 V lithium-thionyl chloride (Li-SOCl2) not rechargeable battery, capacity 8400 mAh, size C, Molex 5264 2-pole connector.

FCM12.4: 4-pole M12 female spare connector, for connecting the data logger at distances greater than 1 m from the rain gauge.

FCM12.8: 8-pole M12 female spare connector, for connecting the data logger to the PC.

This Product is manufactured by Delta Ohm

Specifications

Power Supply Internal 3.6 V lithium-thionyl chloride (Li-SOCl2) not rechargeable battery, size C, capacity 8400 mAh, Molex 5264 2-pole connector 3 x 1,5 V alkaline batteries (not supplied with the instrument) can be used to replace the lithium battery when exhausted
Recorded Event NC or NO contact
Resolution Configurable from 0.050 to 1.599 mm/sample
Storage Capacity 32.255 samples (equal to 6451 mm of rainfall with 0.2 mm/sample resolution) Non-volatile memory and cyclic memory management
PC Interface Isolated RS232C serial port -115200 baud
Display 2- row backlit LCD
Indications on Display Rain quantity in mm from the counter reset Rain quantity in mm in the last hour and the last 4, 24, 48, 72 and 96 hours
LED Indicator Flashes red if the rain gauge contact is open Flashes green if the rain gauge contact is closed
Battery Life Approx. 5 years of continuous use with the supplied lithium battery and in typical operating mode, in which the backlit display is turned on occasionally (about 10 minutes per day) Approx. 18 months of continuous use with 3 alkaline batteries with 2200 mAh capacity
Operating Temperature -30 °C to +60 °C
Protection Degree IP 67, including connectors
