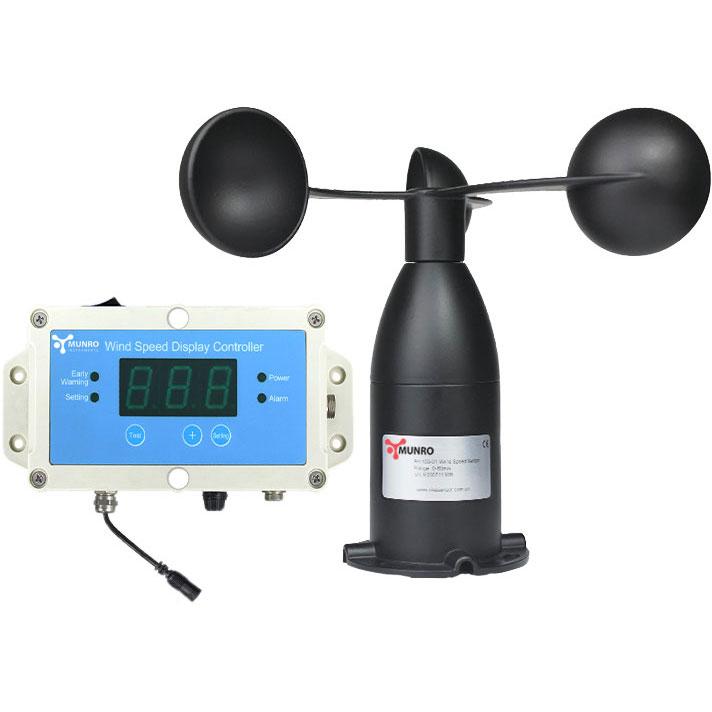

The SX2593 wind speed display controller gives a visual indication of real-time
wind speed, with a LED digital display. In its housing shell, build in a
microprocessor with the function of high performance, low power consumption.
The wind speed early warn value and alarm value can be set by buttons on the
panel. When alarming, the signal output can be controlled by relay.
SX2593 is the companion to our wind speed sensor.
Range: 0-60m/s, 0-216km/h
Resolution (display): 0.1m/s, 0.1km/h (<100km/h)
Accuracy (sensor): ±1m/s
Alarm response time: <100mS
Type of alarm: Sound and light alarm
Contact capacity: 5A@30VDC
Early warning: Any value within 0 m/s ~39 m/s, the early warning value must be lower than the alarm value
Any value within 0km/h ~99km/h, the early warning value must be lower than the alarm value
Alarm: Any value within 1 m/s~40 m/s, Any value within 1km/h ~144km/h
Operating Temperature: -30°C – +70°C
Power Supply: AC100-240V/DC12V/DC24V
Power consumption: With wire:<3W(sensor & controller)
Wireless:sensor: 0.25W,controller: 2.5W
Ingress Protection: Controller: IP54, wind speed sensor: IP65
Weight (unpacked): Controller: 315g, wind speed sensor: 240g
Main material: Controller: ABS, wind speed sensor:Aluminum alloy & 304SS
Storage Condition: 10°C – 50°C@20%-90%RH.
