Anaerobic Workstation

AW800TGRF4P

SKU: AW800TGRF4P Category: Tag:

Description

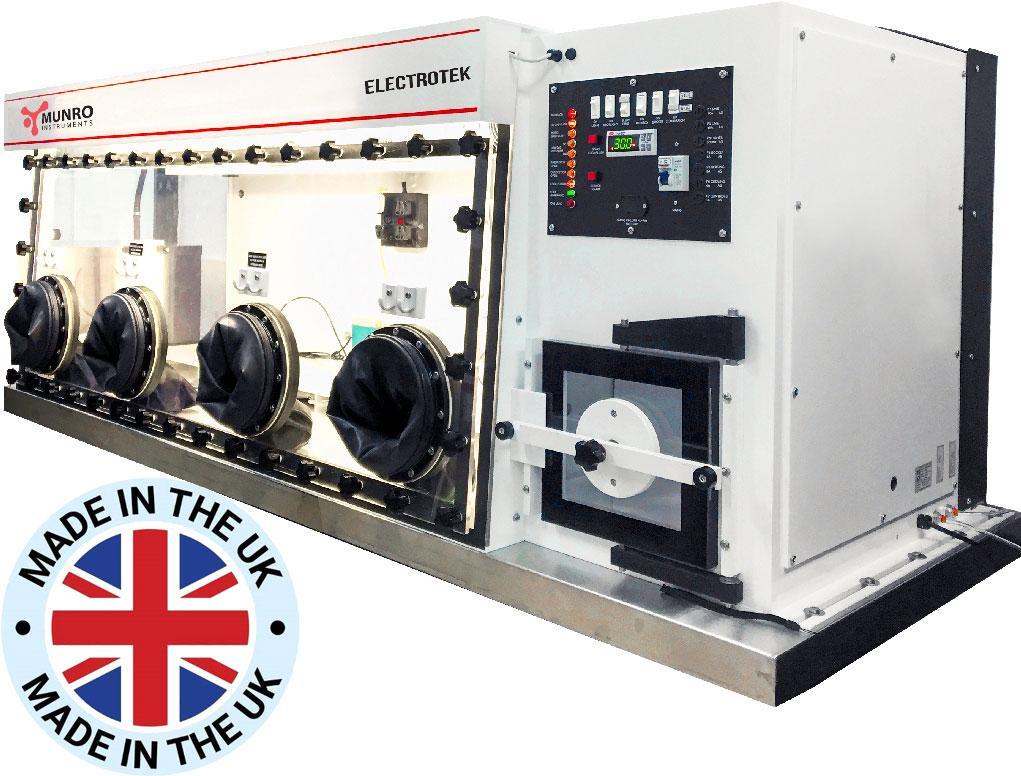

The AW800TGRF4P is the largest workstation in the Electrotek range. One of the main advantages of the
unit is that despite its large capacity, it only occupies a modest amount of bench area. The workstation is
very economical to run, as two gas supplies are used.
The AW800TGRF4P will comfortably incubate up to 800 Petri dishes and comes complete with catalyst
and plate holders.

Product Specifications



Incubation Capacity 800 Petri Dishes
Interlock Capacity 100 Petri Dishes
Dual Gas Supply 1) Mixed Gas 10% H2 + 10% CO2 +80% N2 (Flushing and incubation)
2) N2 (Flushing only)
Electrical Supply 240V.A.C., 50Hz, 500W
Temperature Range Ambient + 4°C to 42°C
Temperature Stability ±0.5°C @ 37°C
Overall Dimensions W=2064mm, D=660mm, H=660mm

Documentation

AW-SERIES DataSheet
