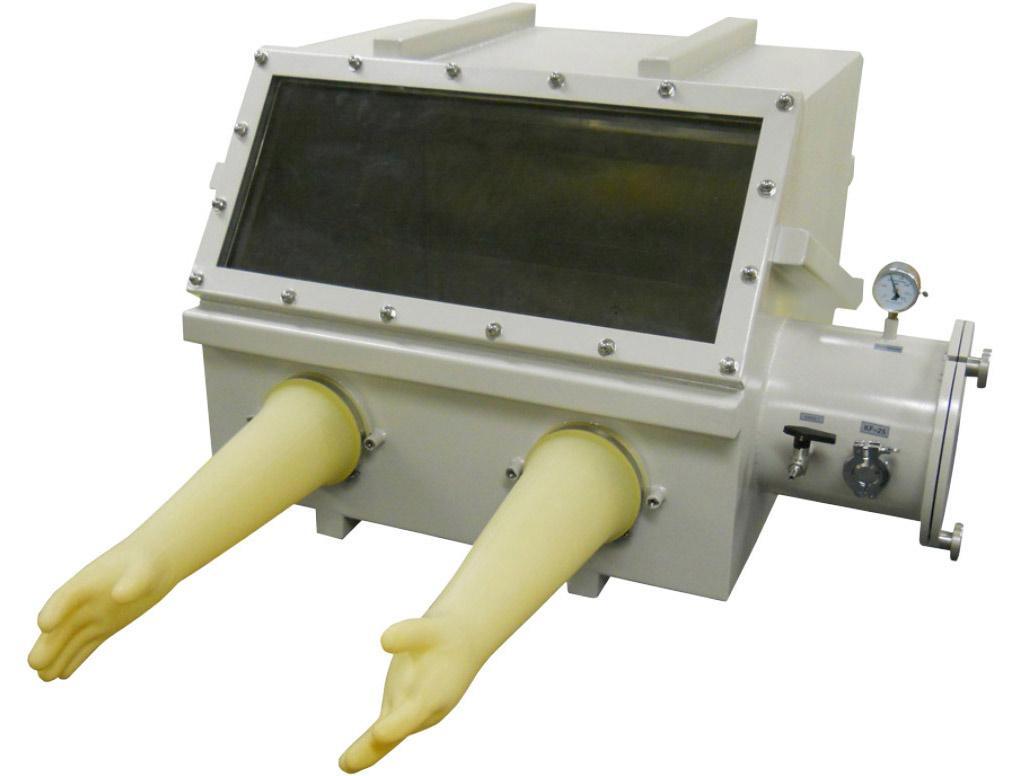

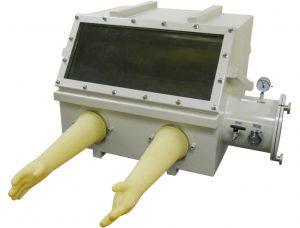

STAINLESS-STEEL LABORATORY GLOVE BOX 550W X 440D X 410H
stainless steel vacuum glove box with an airlock chamber and gauges. The airlock chamber size is 200mm in diameter and 260mm in length, while the main chamber size is 550mm wide, 440mm deep, and 410mm high. The front window size is 500mm wide and 165mm high. The gross weight of the glove box is 96kg. The glove box is equipped with a transparent front panel for easy operation. It can maintain a vacuum pressure of up to 0.05 Torr (0.067 mbar) in the airlock chamber and up to 0.5 Torr (0.67 mbar) in all glove boxes. The maximum positive pressure is 1.1 atm, and the gloves cannot work if the pressure is higher than 1.1 atm (810 torrs). The glove box can maintain inert gases pressure for more than 12 hours, and the main chamber leakage rate is less than 3 torr per hour.
