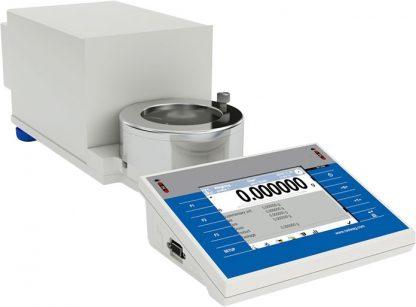

Ultra Micro-balance for filters weighing – 2.1g/0.1µg

UYA 2.4Y.F

a modern weighing device, especially useful when the measurement requires perfect accuracy and high speed.

SKU: UYA 2.4Y.F Categories: ,


Professional Microbalance for filters weighing – 2.1g/0.1µg:

  • Programmable IR Proximity sensors for Zeroing/Tarring/Printout/Weighing Chamber Control
  • Weighing pan – ø 50 mm
  • Weighing Chamber Dimensions – ø 118×35 mm
  • Wide Range of Applications – Animal Weighing, Parts Counting, Pippettes Calibration,GMP/GLP, Percentage Weighing, Air Density Correction, Statistics, Filling and more
  • Display – 5.7 Inch Touch Screen
  • Electronic Level Indicator
  • Internal Calibration
  • Large Database which enables various users and recording Weighments, Products, Tarring and ALIBI Memory
  • Interfaces – 2×USB host, 2×RS 232, Ethernet 10/100 Mbit, Wireless Module

Optional Accessories:

  • Thermal Printer
  • Anti Vibration Table
  • Additional display monitor
  • Computer Software


Max Load 2.1g
Readability 0.01 mg
Pan Size Ø 50mm,
Repeatability 0.1µg
Linearity ±1.5 µg
Minimum Weight 0.01mg
Power Supply 13,5 ÷ 16 V DC / 700mA
Weighing Chamber Dimensions Ø 118 × 35 mm
Eccentric Load deviation 1.5 µg
Adjustment calibration automatic (internal)
Memory RAM: 256 MB DDR2, flash: 8 GB microSD


Ultra Micro-balance for filters weighing 2.1g/0.1µg datasheet
